Strasser+Bogner, Pforzheim

Bodywork and paint store

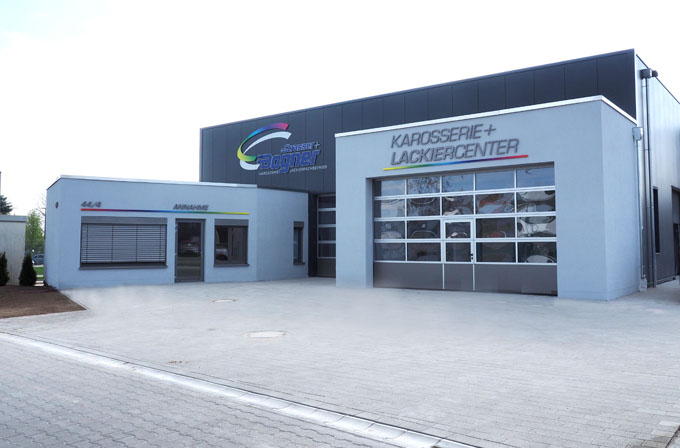

Strasser+Bogner, Pforzheim is expanding the size of its business with the construction of a new 900 square meter body and paint center in Kieselbronner Straße in Pforzheim. This increases the size of the business by around 420 square meters compared to the previous location. The new body and paint center is equipped with the latest SEHON high-tech painting systems and technology. An environmentally friendly and energy-efficient combined heat and power plant has been integrated. In conjunction with the new building, the workforce is also set to grow over time. Strasser + Bogner currently employs 9 people.

The family business, which was founded in 1962, is managed by Tatjana and Marco Bogner in the second generation of the family. Since the company was founded, automotive technology and bodywork have developed continuously. Strasser + Bogner has developed along with technological progress and increasing market demands, both technically, professionally and personally, and is now optimally equipped with its new body and paint center.

CONTACT: Strasser+Bogner, Kieselbronner Str. 44/4, 75177 Pforzheim, Tel.: 07231-314174

Paint booth

SEHON SE-PROFESSIONAL FUTURA spray booth

• Combination spray booth with drying mode (painting and drying)
• Dimensions: 8.0 x 4.5 x 3.9 (length x width x height)
• Year-round heat recovery
• Folding sliding doors
• LED lighting as angled luminaires on the filter ceiling
• LED lighting in the side folding sliding doors
• Automatic spray booth pressure control SE-Control
• SE-AIRPLUS COMFORT ventilation system with humidity sensor
• Lifting platform incl. substructure for floor-level installation in grating gratings, for cross transport rails
• Supply cabinet with integrated lifting platform control valve
• Galvanized grating
• Electrical installation
• Heating with pumped hot water

Drying system (dryer)

SEHON SE-PROFESSIONAL drying system

• Drying system (8.0 x 4.0 x 3.2 )
• Heat recovery
• Electrical installation
• Heating with pumped hot water

Vehicle preparation

SEHON universal preparation stations

• 4 universal preparation stations underfloor
• 1 parts workstation with floor extraction system
• Conversion of the old unit to heating by means of pumped hot water with relocation
• Roll-up curtains at the sides between the preparation areas (each 6 x 4 m)
• Roll-up curtains including suspension construction and assembly in a network
• Strip curtain for parts workstation (4 x 4 m)
• LED workstation lighting per preparation workstation
• Hall heating function
• Panel walls for cladding the preparation areas
• 2 lifting platforms incl. substructure for floor-level installation in grating gratings
• 2 lifting platforms incl. substructure for floor-level installation in grating gratings, with wheel-free lift
• Heating with pumped hot water
• Infrared ceiling track system over 21 m

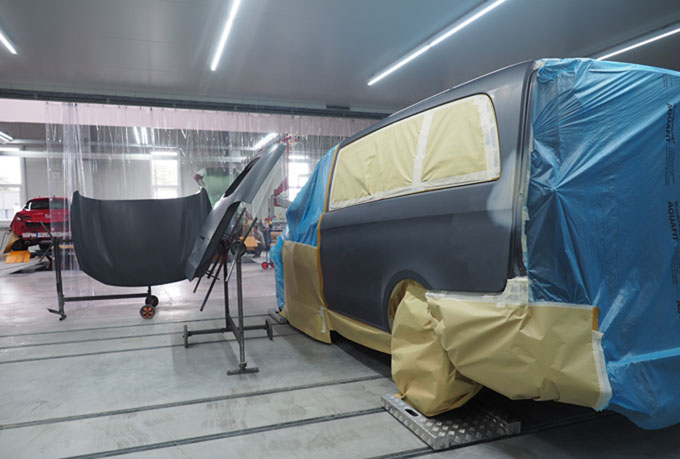

Masking area

• Masking area (8.0 x 10.0 m)
• Panel ceiling with LED lighting
• Strip curtain
• Lifting platform incl. floor-level installation in hall floor, for cross transport rails

Cross transport rails

Cross transport rails over 30 meters with 12 cross transport trolleys.
